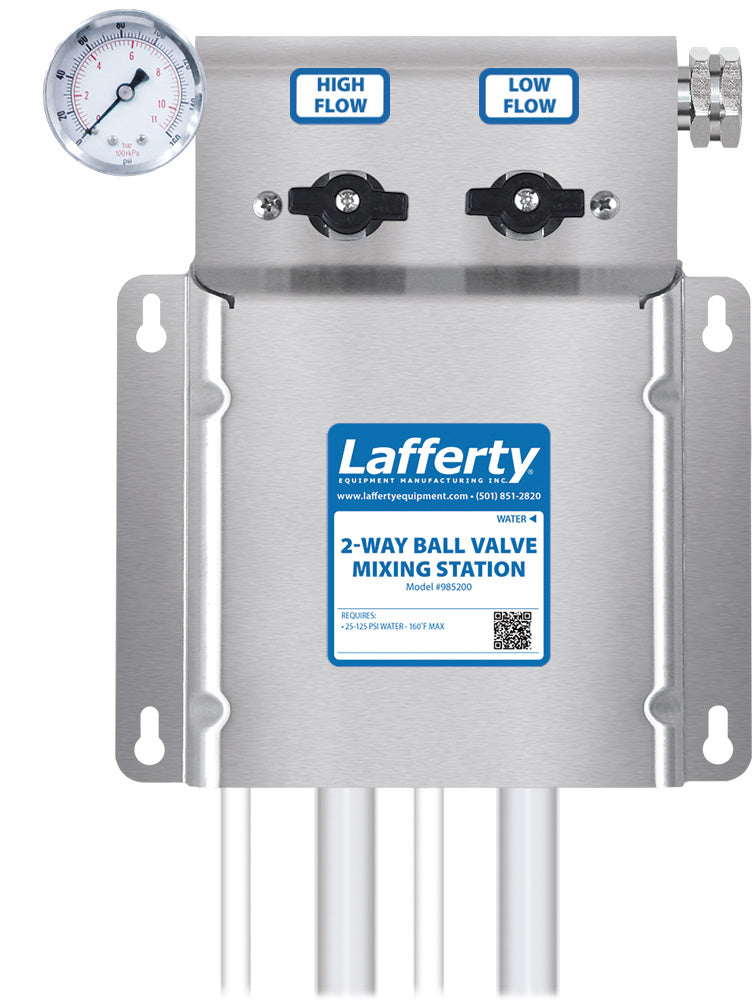

2-Way Ball Valve Mixing Station

2-Way Ball Valve Mixing Station

Shipping calculated at checkout.

2-Way Ball Valve Mixing Station

The 2-Way Ball Valve Mixing Station is a chemical proportioner for accurately diluting 2 chemical concentrates to required ratios and filling any sized container with diluted, ready-to-use chemical solutions. This venturi injection system uses city water pressure (25 - 125 PSI) to draw and blend chemical concentrate into the water stream to create an accurately diluted solution. Ball valve activation allows for hands-free dispensing. Available with separate flow rates for each ball valve to dispense into any sized container or equipment.

KEY FEATURES

  • Eliminates manual mixing and optimizes chemical utilization, employee safety and labor efficiency
  • Ball valve activation allows for hands-free dispensing
  • Chemical resistant wetted components ensure years of outstanding performance with minimal maintenance
  • Industrial-strength design holds up in tough environments
  • Water pressure gauge eliminates guessing, reduces set-up time and helps with troubleshooting
  • Dilution ratio controlled with precision metering tips
  • Draws chemical concentrate from any sized container
  • Choice of left or right side water inlet
  • Mixing stations can be plumbed in series

INCLUDES

  • Stainless steel mounting bracket
  • Activation ball valve
  • Polypropylene injector body
  • Integrated brass back-flow preventer
  • Easy-to-read water pressure gauge for accurate tip selection
  • 20 color-coded metering tips for setting dilution ratios
  • (2) 6' chemical suction tube with strainer
  • (2) 4.5' open flow discharge tube
Requirements

WATER

  • Temperature - up to 160°F
  • Pressure - 25-125 PSI
  • Supply Line - 1/2" Minimum

FLOW

  • High Flow (Black Injector) - 4.0 - 7.3 GPM
  • Low Flow (White Injector) - 1.9 - 3.4 GPM
  • Bottle Fill (Blue Injector) - 0.6 - 1.0 GPM

DILUTION RATIO RANGE @ 40 PSI

  • High Flow - 1,031:1 to 4.8:1
  • Low Flow - 480:1 to 3.5:1
  • Bottle Fill - 142:1 to 1.7:1
Safety Documents

PRODUCT INSTRUCTIONS

PRODUCT INFORMATION
