NEDLIGHTS HPS DE 1000W FIXTURE - 208/240/277V

NEDLIGHTS HPS DE 1000W FIXTURE - 208/240/277V

$295.00 USD
$295.00 USD
Sale Sold out
Shipping calculated at checkout.

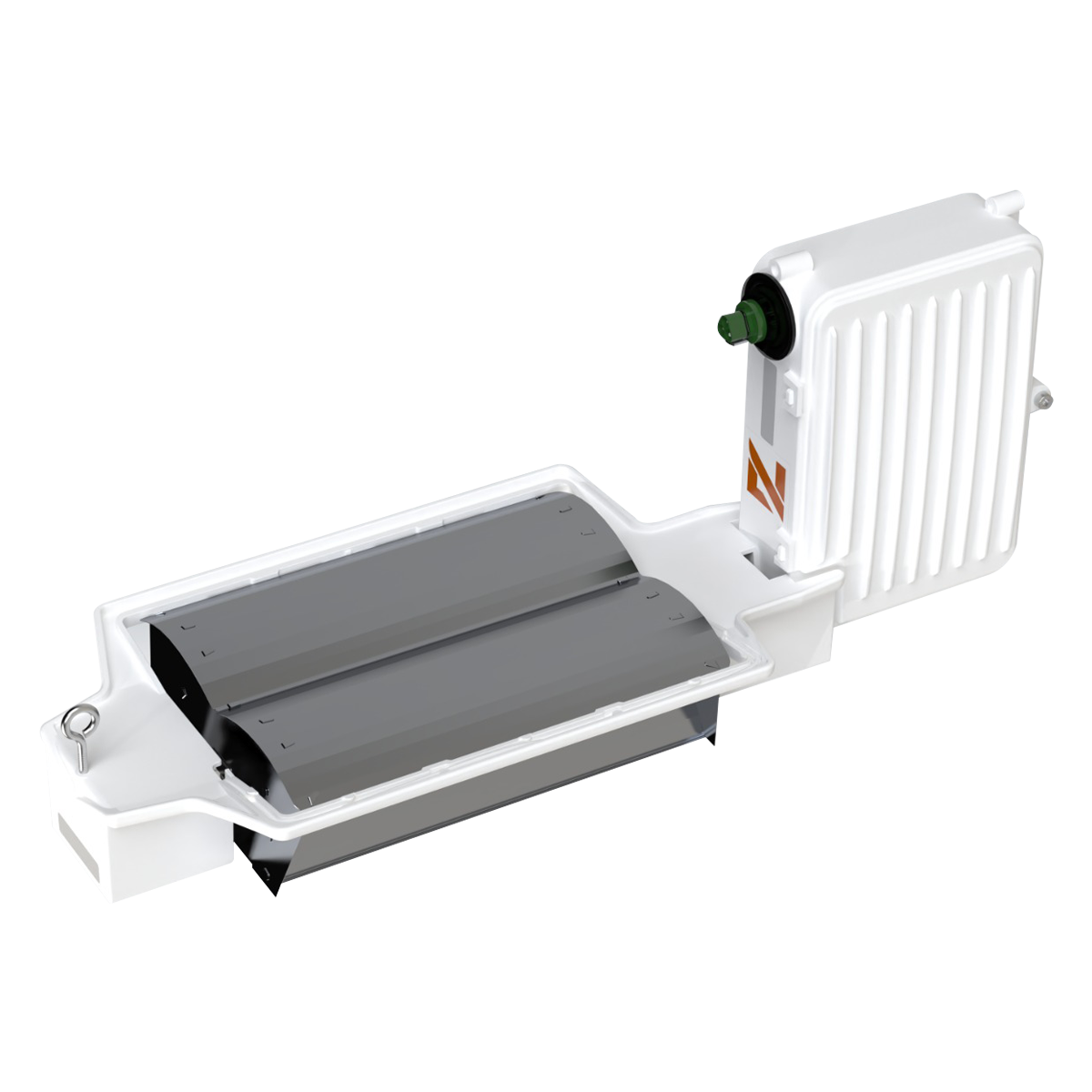

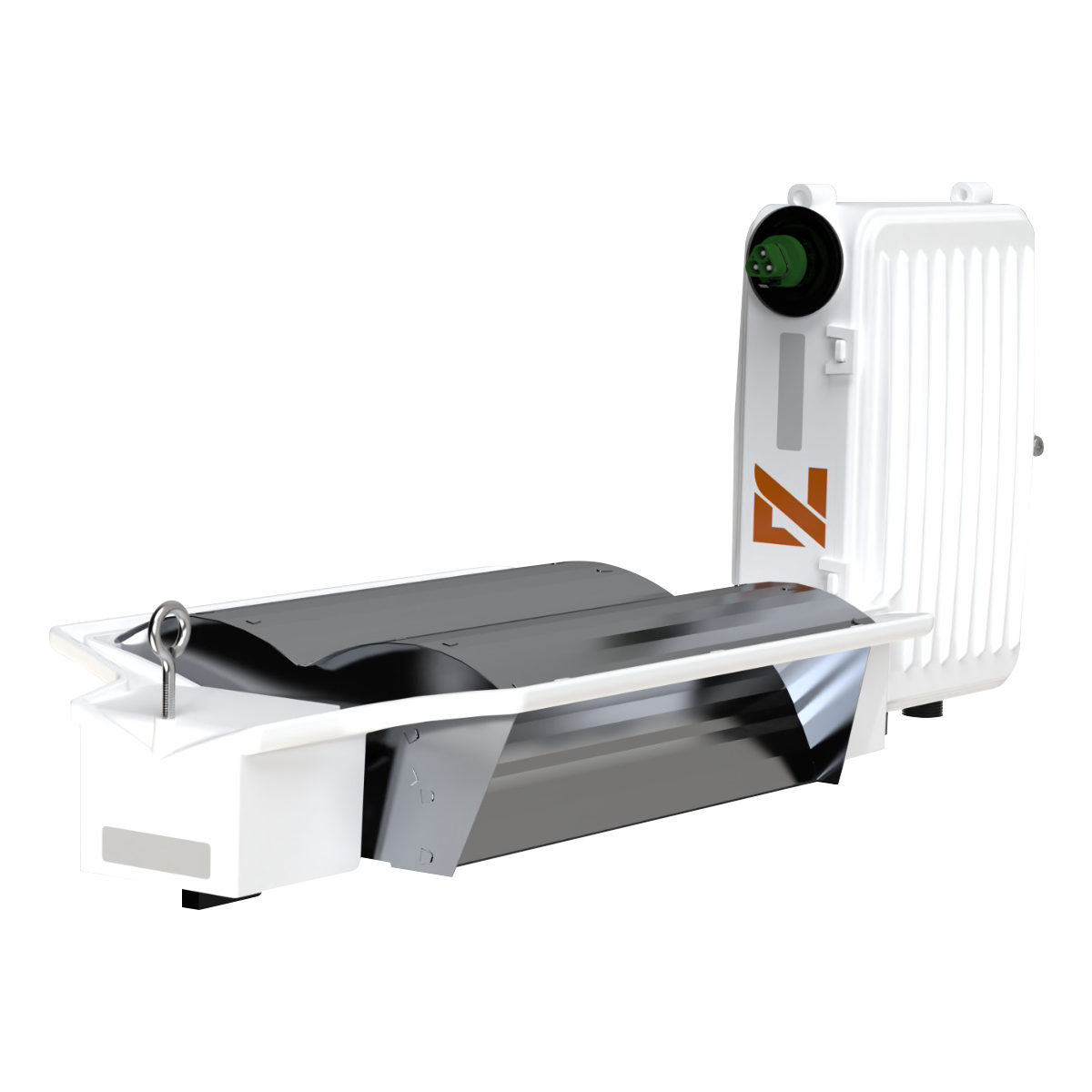

HPS Toplight 1000w Double Ended Fixture

For Indoor/Greenhouse Horticulture Lighting


Key Features

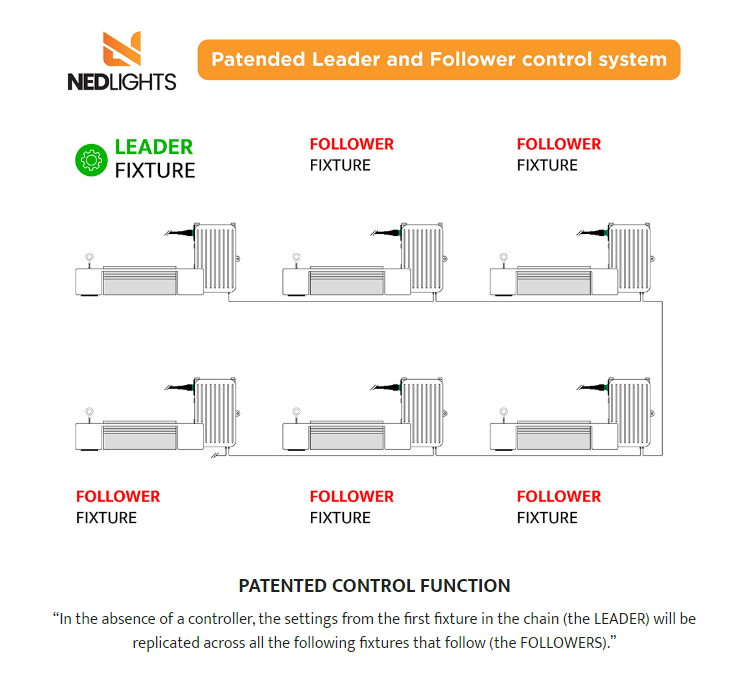

  • Patented Leader & Follower Control System
  • Compact, light-weight, easy installation and maintenance design

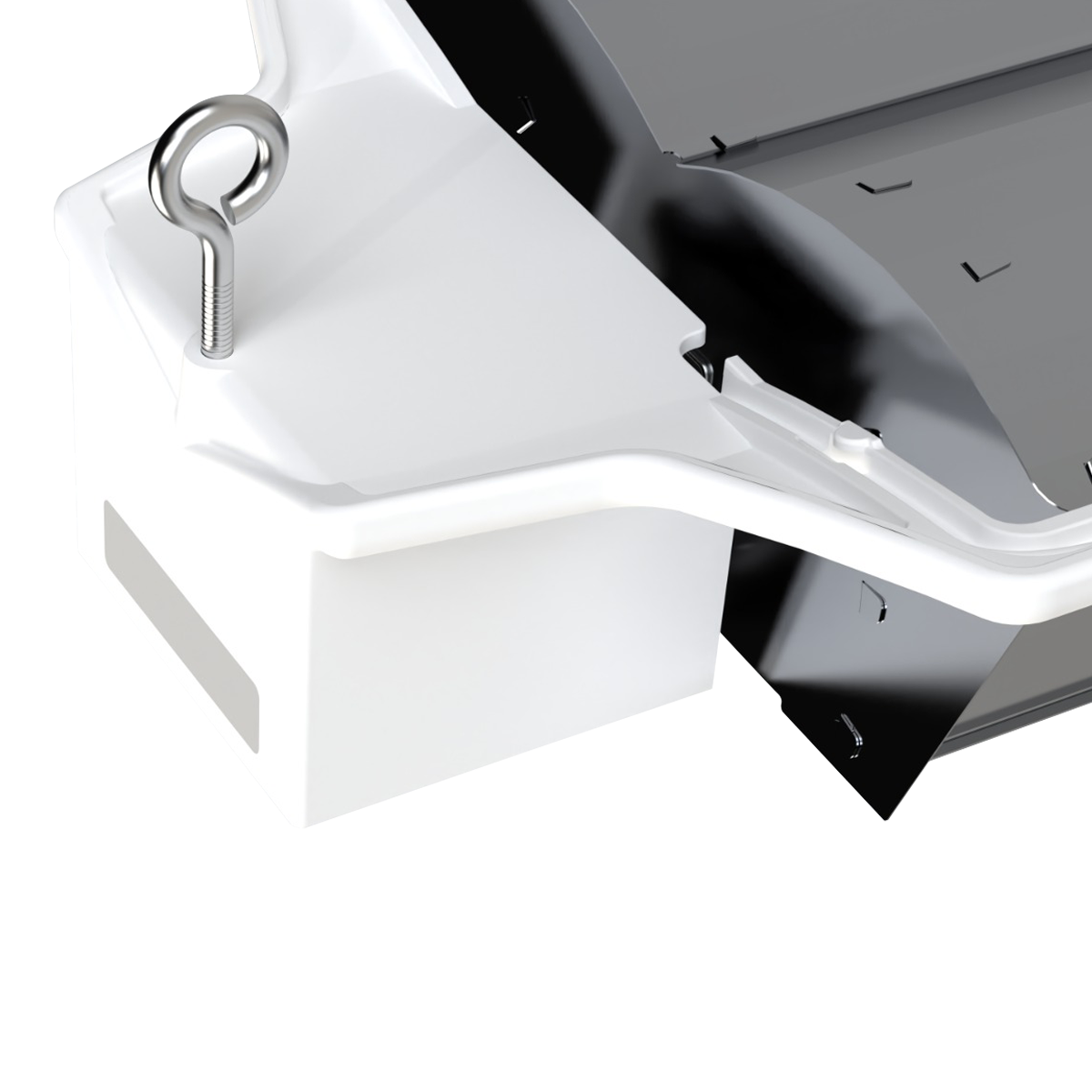

  • All cast aluminum body
  • Top class 1000w DE HPS lamp
  • 0-10V  Dimmable
  • highest efficiency replaceable reflector
  • 2,150 μmol/s output

Completely unique to NEDLIGHTS, the new NL1000W DD/CTRL is the world’s first fixture capable of handling voltages between 208-400V. This innovative approach to voltage handling means that customers operating on multiple voltages only need one of our units (208-400V), rather than two or more different units (208-277V & 347-400V).

For retail stores, it allows for an incredible reduction in the different lights voltages they need to stock. With Nedlights, you only need to stock one 208-400V fixture!!

This fixture is made using the highest quality, proven and time-tested components inside. Designed in The Netherlands





Specifications


Input voltage Range (AC) 208-400V
Input frequency 50/60 Hz
Voltage performance tolerance (AC) 187V (-10%@208V) ~ 440V (+10%@400V)
Safety voltage range (AC) 175V (-15%@208V) ~ 460V (+15%@400V)
Input current operating (Norn) 5.9A (@208V), 3.1A (@400V)
Ignition voltage (peak)* ≥ 3 kV
Ignition timeout 20 min
Max. line current 6.4A
Inrush current Peak* <30A
Line current Harmonics (THD) <10% @208-240V <15%@277-400V
Power factor (Norn) >0.97@208-400V
U-out 350V
Operating frequency (Norn) >110 kHz@ 1000W
Efficiency (Norn) >94% @208-277V >95% @347-400V



Special Order Product

Leadtime 4-6 weeks
