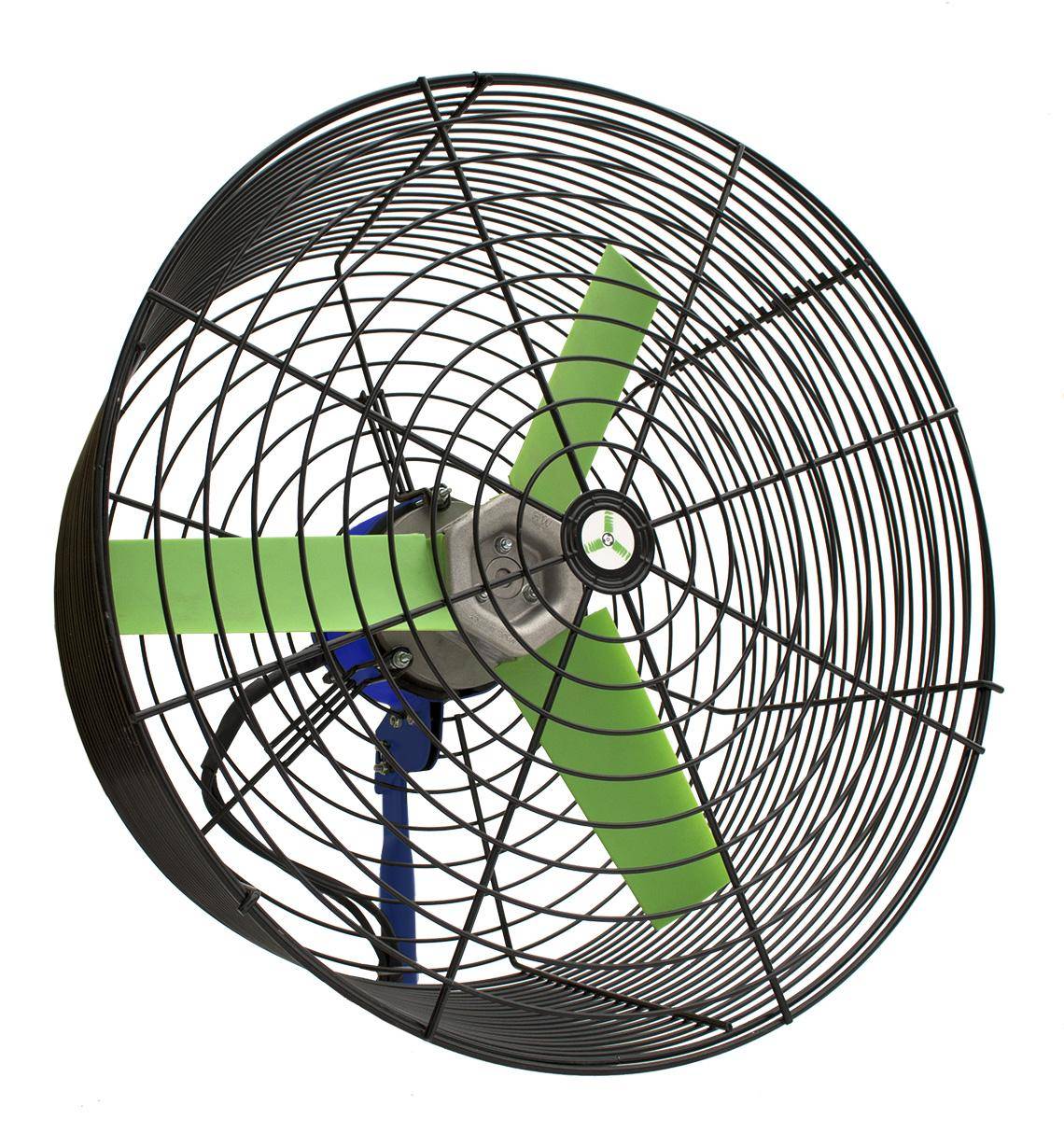

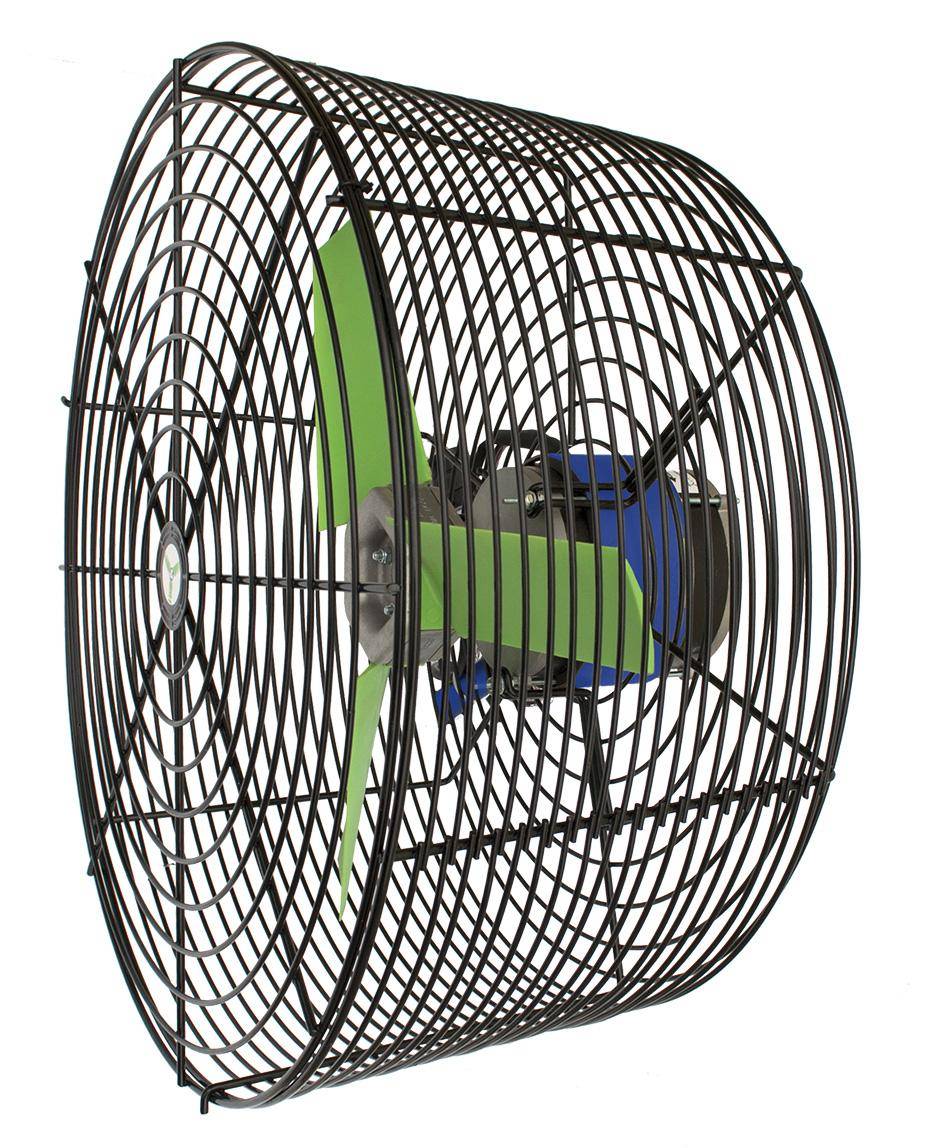

SNAP-Fan AC Powered - 20" Fan - Brushless

BRUSHLESS EC HAF

• 4,370 thrust CFM tested at BESS
• 4 lbs thrust 280 watt at 80% Duty Cycle
• High efficiency industrial grade Brushless Servo Motor
• Motor made in USA. Water resistant, O-ring seals, IP54
• Programmable motor can be set to run at a discreet speed from 350-1800 RPM and/or 0-10v controlled variable speed
• Soft start, thermal roll back and locked rotor protection are standard features
• Includes liquid tight conduit 5ft lead wires
• Low vibration mounting system reduces noise
• Glass reinforced polypropylene airfoil blade offers high efficiency and expanded air throw profile
• Efficient deep basket design increase performance
• Rugged power coated corrosion resistant basket
• Includes hanging fan mount

Variable Speed Controllers available:
Single Zone EC Controller
Multi Zone EC Controller

TECHNICAL DETAILS:
Spec Sheet

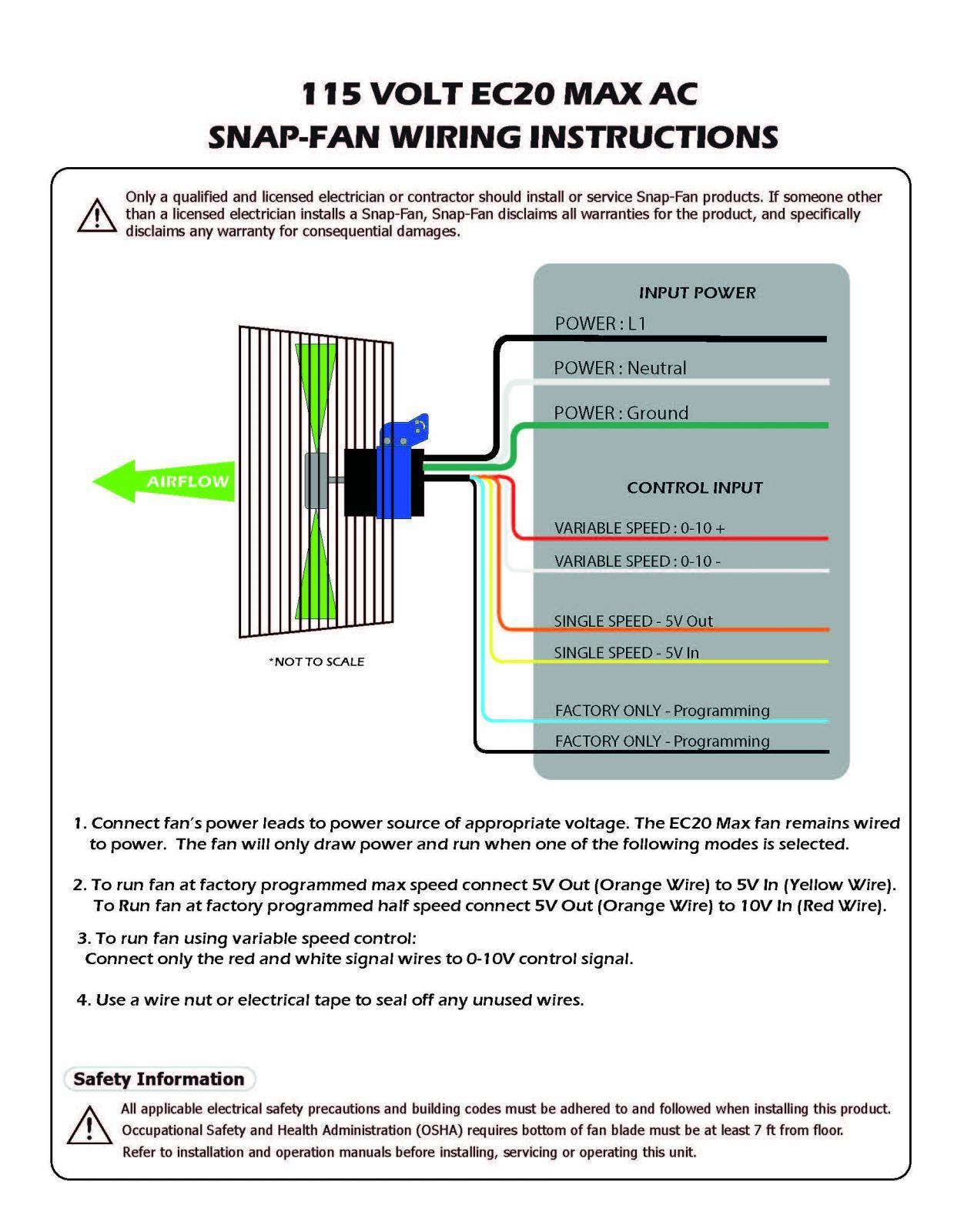

Wire Diagram
