SNAP-Fan AC Powered - 24" Fan

• 30-70% more efficient than competing fans

• High efficiency industrial grade Brushless Servo Motor. 120 VAC and 208/230 VAC.

• Motor made in USA. Water resistant, O-ring seals, IP54.

• Includes liquid tight conduit 5ft lead wires.

• Programmable motor can be set to run at a discrete speed from 350-1800 RPM and/or 0-10v controlled variable speed.

• Soft start, thermal roll back and locked rotor protection are standard features.

• Custom configuration options to fir your application

• Patented low vibration aerodynamic motor mounting system reduces noise and improves efficiency.

• Glass reinforced polypropylene airfloil blade offers high efficiency and durability

• Rugged corrosion resistant frame molded to maximize airflow

• All parts serviceable and/or replaceable

Variable Speed Controllers available:
Single Zone EC Controller
Multi Zone EC Controller

CAUTION: Fan speed cannot be varied by any external means including but not limited to VFD, TRIAC and PWM.

TECHNICAL DETAILS:

Spec Sheet
Mounting Hole Diagram

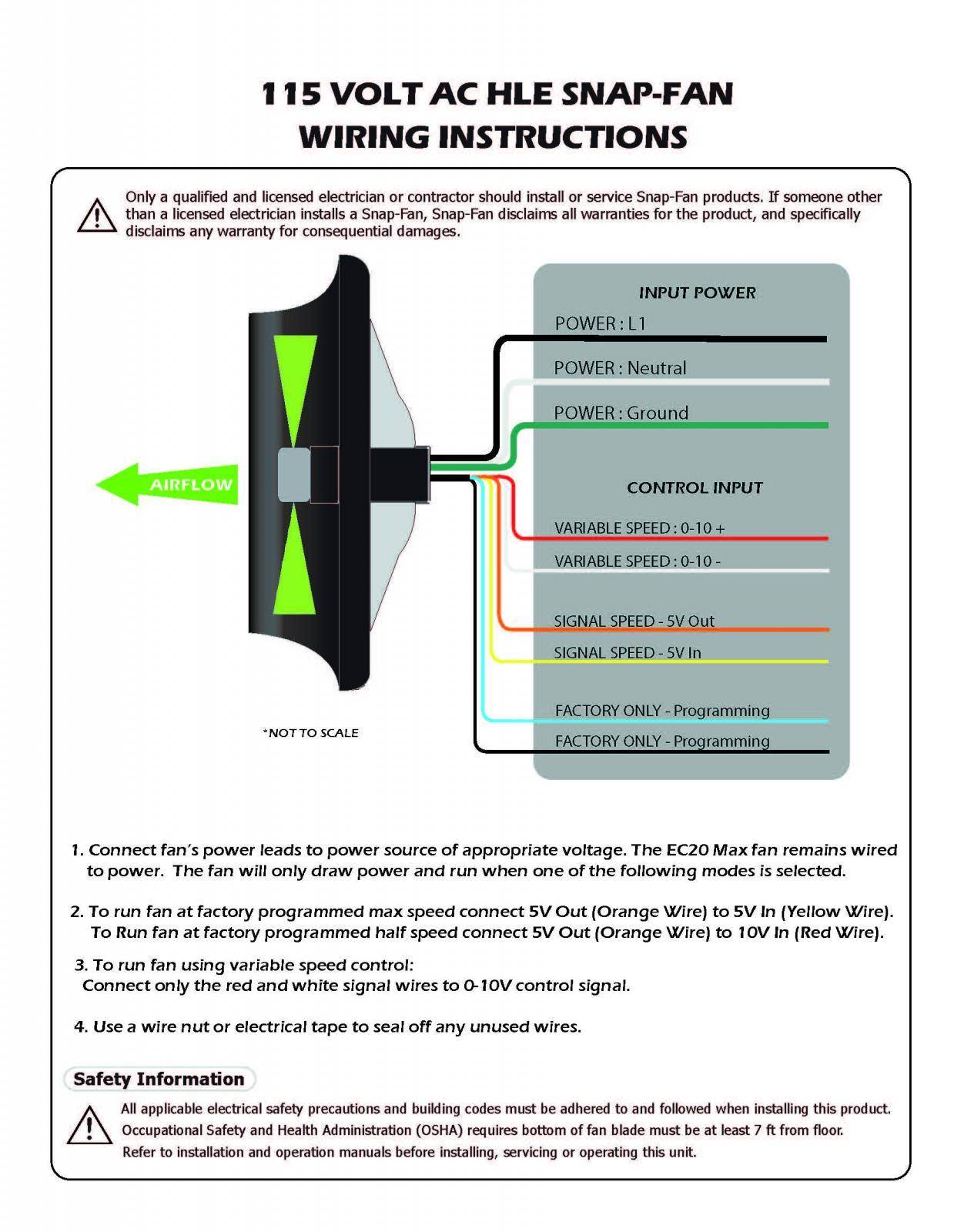

Wire Diagram
