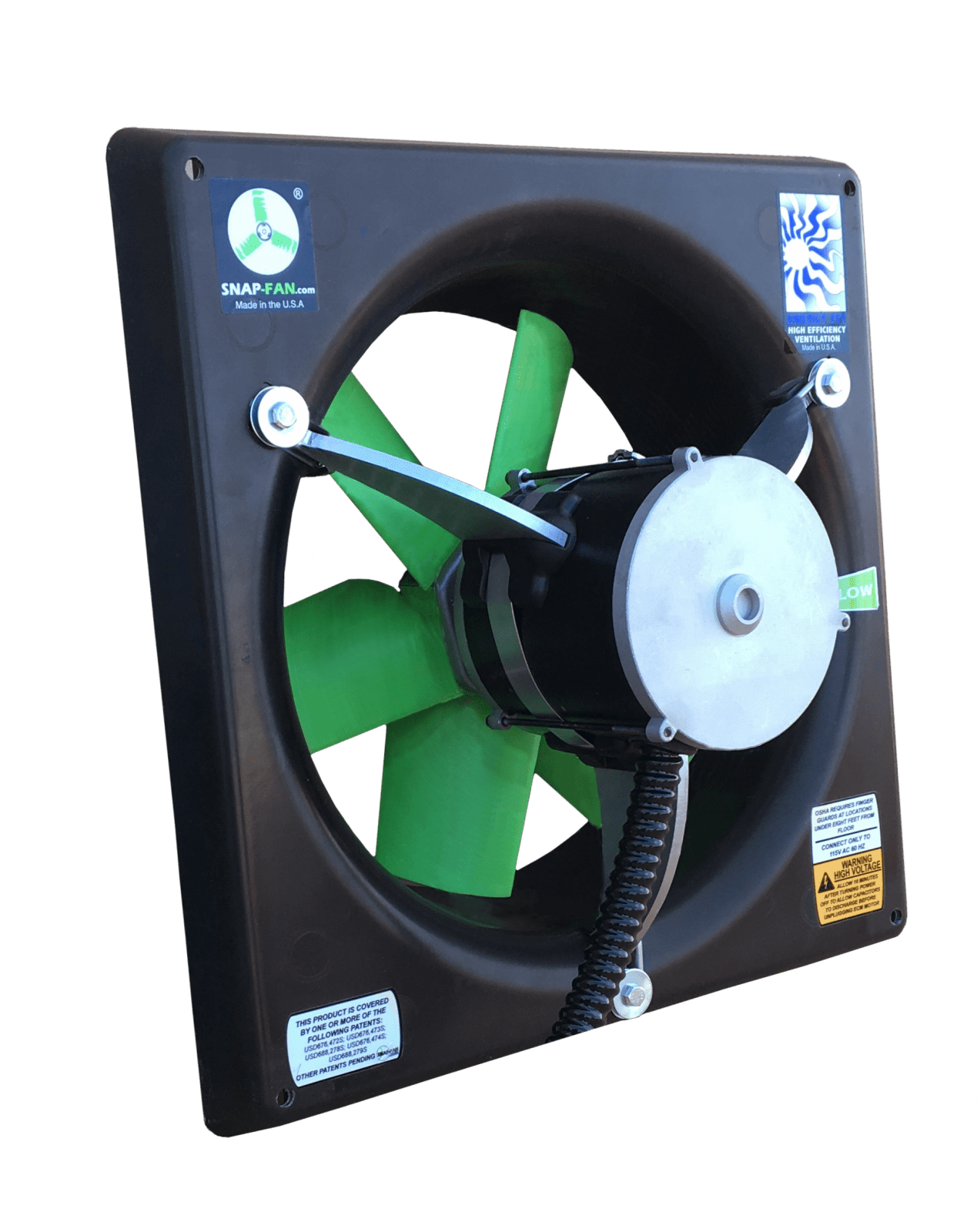

SNAP-Fan AC Powered - 12" Fan - HP

High Performance Snap-Fan Line, packed with more power and features than our other fans of the same size.

• High efficiency industrial grade EC Motor
• Specifically designed to operate solar direct on a 24-volt solar panel or battery
• 2 Speeds – 50%/100% No controller required
• Accepts 0-10V control for continuously variable speed control
• Water resistant motor made in USA with IP54 rated protection
• Includes liquid tight conduit and five foot long wire leads
• Soft start, thermal roll back and locked rotor protection are standard features
• Highest quality materials with an innovative design creates an efficient and quiet fan
• All parts replaceable and/or serviceable
• High Performance – 83% higher CFM than standard 16” AC Snap-Fan

120V/240V/277V
Variable Speed Controllers available:
Single Zone EC Controller
Multi Zone EC Controller

TECHNICAL DETAILS:

Spec Sheet

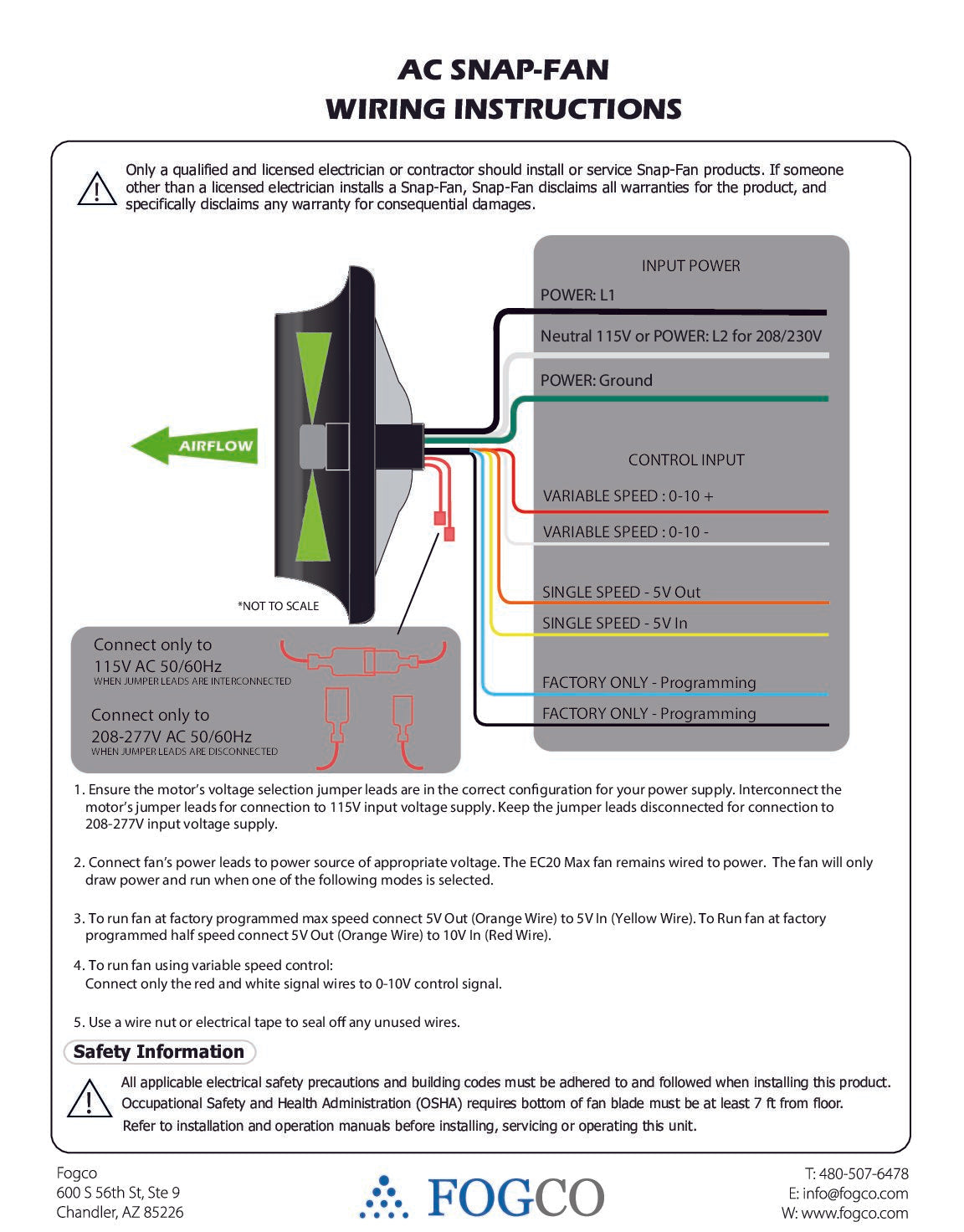

Wire Diagram
