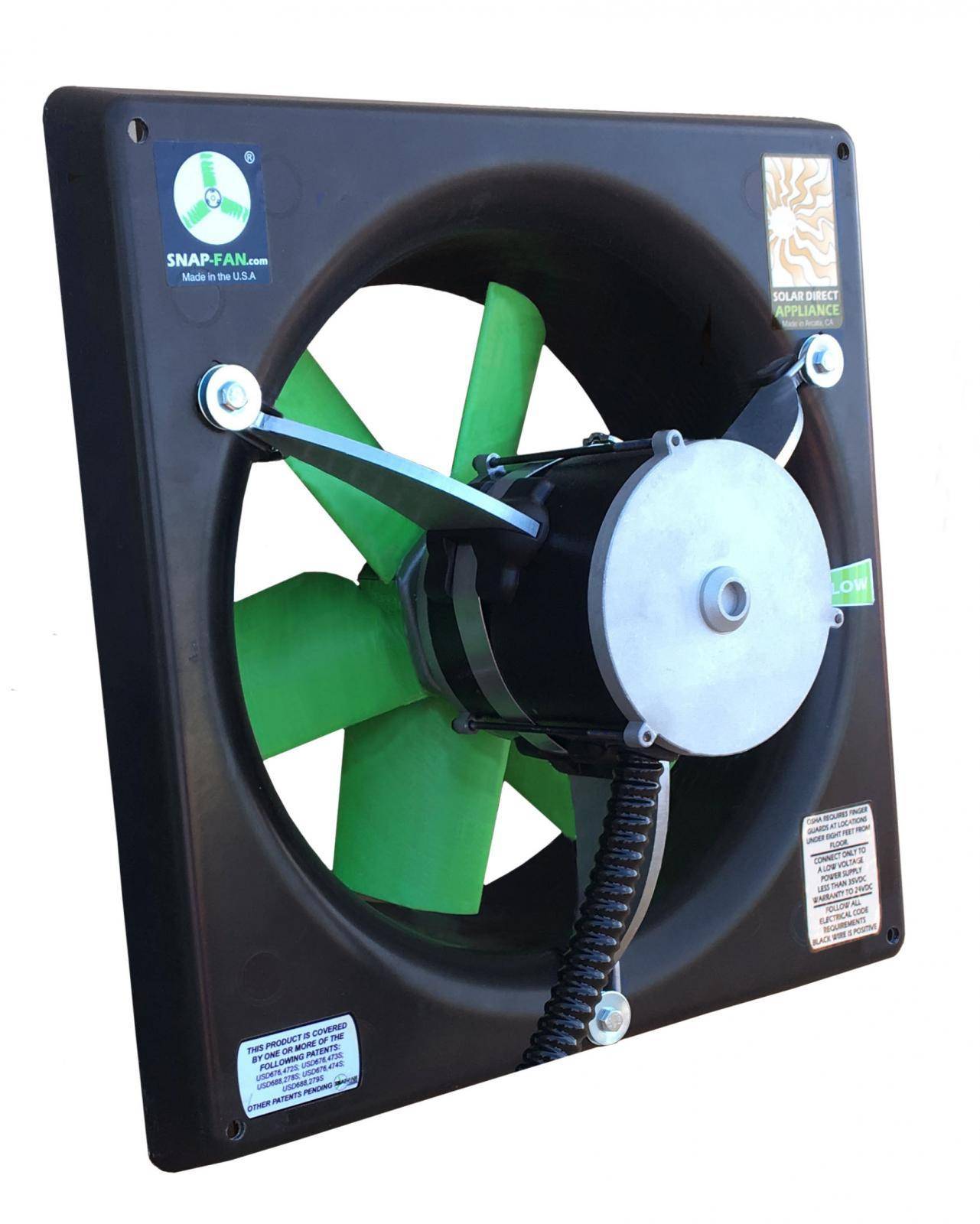

SNAP-Fan Solar/Battery DC - Brushless 12" Fan - HP

High Performance Snap-Fan Line, packed with more power and features than our other fans of the same size.

• High efficiency industrial grade Brushless DC Motor
• Specifically designed to operate solar direct on a 24-volt solar panel or battery
• Three discrete speed taps for adjustable performance
• Water resistant motor made in USA with IP54 rated protection
• Includes liquid tight conduit and five foot long wire leads
• Soft start, thermal roll back and locked rotor protection are standard features
• Highest quality materials with an innovative design creates an efficient and quiet fan
• All parts replaceable and/or serviceable
• High Performance – 10% higher CFM than standard 12” DC Snap-Fan

TECHNICAL DETAILS:

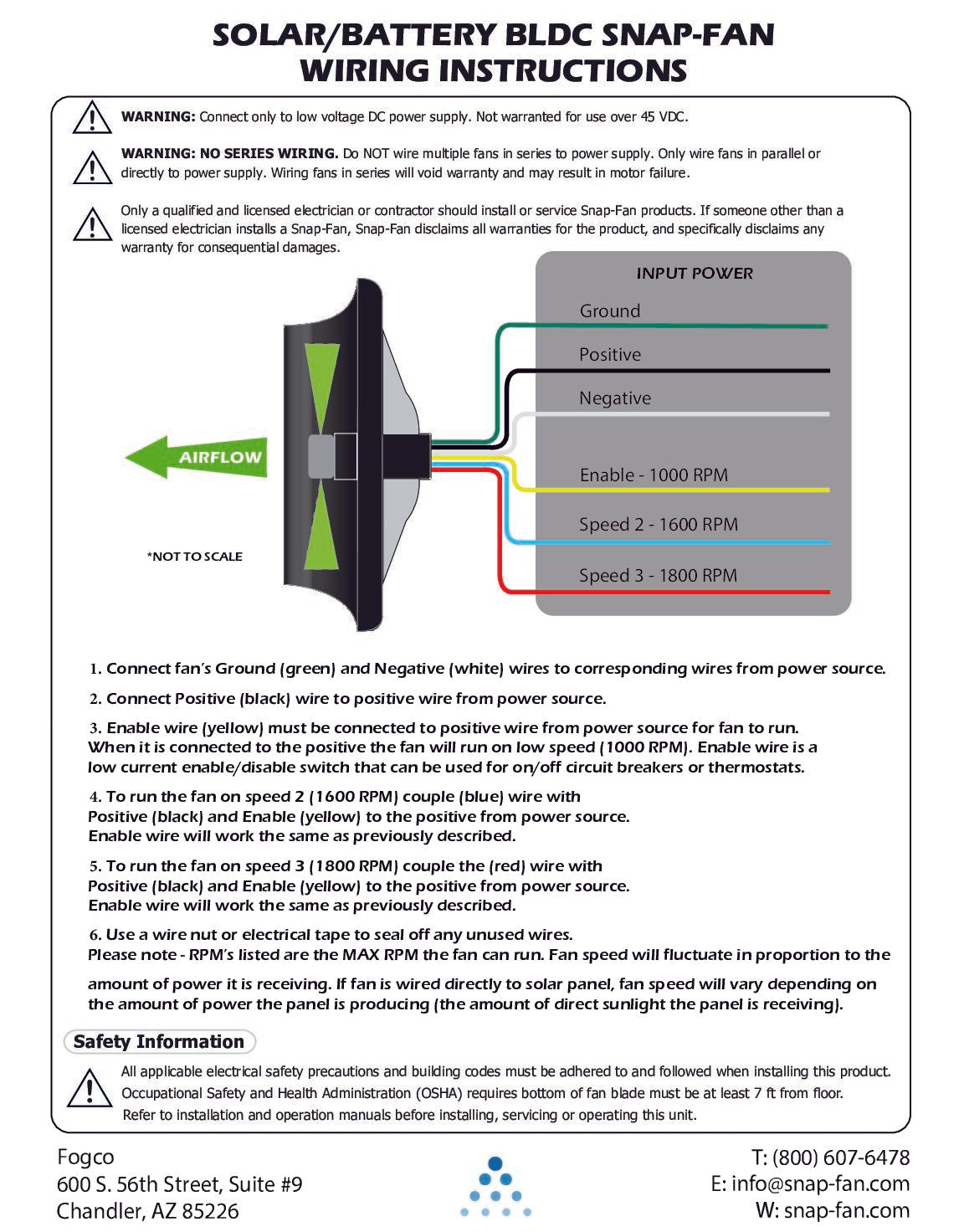

Wire Diagram
